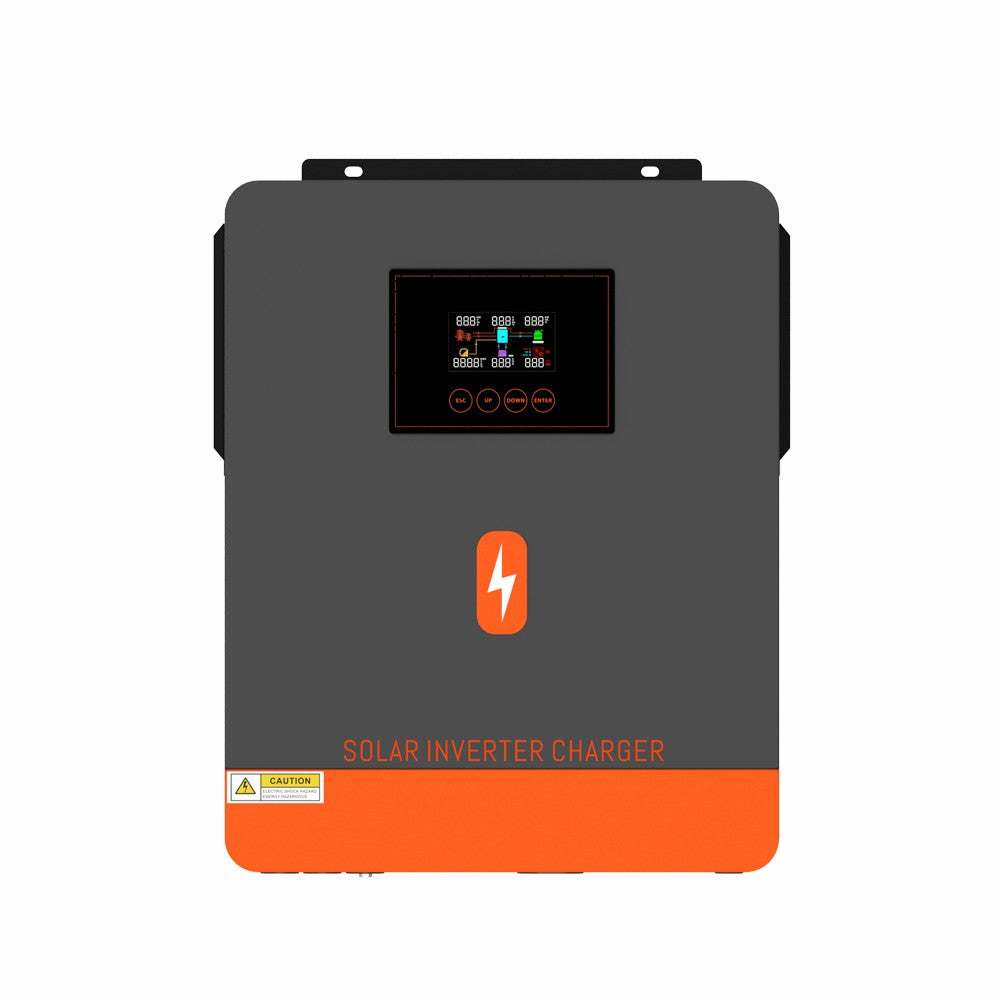

●Hybrid Solar Inverter On Grid Pure Sine Dual Output with MPPT
●Hybrid Solar Inverter On Grid Pure Sine Dual Output with MPPT
Regular price
$299.99 USD
Regular price
$559.99 USD
Sale price
$299.99 USD
Unit price
per
Couldn't load pickup availability
PowMr 6.2KW 4.2KW Hybrid Solar Inverter On Grid Pure Sine Wave Inverter 24V 48V 230V Dual Output with MPPT 120A Solar Charger
【Charging & Output Modes】
Solar Inverter support 3 charging modes(Choose solar power/Utility power/AC power to charge battery) and 3 output modes(choose Sola/Utility/Battery which source to power your load at first priority)
【Compatible various batteries】
Compatible with various 24V(4.2KW) 48V(6.2KW) batteries such as AGM, Gel, Lead-acid, Lithium-ion and LiFePO4 batteries. Built-in lithium activation along with comprehensive battery protection features including short circuit protection, over/under voltage protection effectively protects battery life.
| INVERTER MODEL | POW-HVM4.2M-24V-N | POW-HVM6.2M-48V-N | ||||||
| Line Mode Specifications | ||||||||
| Input Voltage Waveform | Pure Sine Wave(Utility or Generator) | |||||||
| Nominal Input Voltage | 230Vac | |||||||
| Max AC Input Voltage | 300Vac | |||||||
| Efficiency(Line Mode) | >95%( Rated R load,battery full charged) | |||||||
| Transfer Time | 10ms typical(UPS);20ms typical(Appliances) | |||||||
| Inverter Mode Specifications | ||||||||
| Rated Output Power | 4.2KW | 6.2KW | ||||||
| Output Voltage Waveform | Pure Sine Wave | |||||||
| Output Voltage Regulation | 230Vac±5% | |||||||
| Output Frequency | 50HZ | |||||||
| Peak Efficiency | 0.93 | |||||||
| Overload Protection | 3s@≥150% load;5s@101%~150% load | |||||||
| Surge Capacity | 2* rated power for 5 seconds | |||||||
| Nominal DC Input Voltage | 24Vdc | 48Vdc | ||||||
| Cold Start Voltage | 23.0Vdc | 46.0Vdc | ||||||
| No Load Power Consumption | 30W | 50W | ||||||
| Charge Mode Specifications | ||||||||
| Charging Algorithm | 3-Step | |||||||
| AC Charging Current (Max) | 100A | 100A | ||||||
| Max. PV Array Power | 6200W | 6500W | ||||||
| Nominal PV Voltage | 240Vdc | 360Vdc | ||||||
| PV Array MPPT Voltage Range | 60Vdc~450Vdc | (Battery Connected) | 120Vdc~450Vdc | (Battery Disconnected) | 90Vdc~500Vdc | (Battery Connected) | 120Vdc~500Vdc | (Battery Disconnected) |
| Max. PV Array Open Circuit Voltage | 500Vdc | |||||||
| Max Charging Current(AC charger plus solar charger) | 120A | 120A | ||||||
| Grid-Tie Operation | ||||||||
| Nominal Output Voltage | 220/230/240VAC | |||||||
| Feed-in Grid Voltage Range | 195-253VAC | |||||||
| Feed-in Grid Frequency Range | 49-51±1Hz/59-61±1Hz | |||||||
| Nominal Output Current | 18.2A | 26.9A | ||||||
| Maximum Conversion Efficiency(DC/AC) | 97% | |||||||
| Two Load Output Power | ||||||||
| Full Load | 4200W | 6200W | ||||||
| Maximum Main Load | 4200W | 6200W | ||||||
| Maximum Second Load(battery model) | 1400W | 2066W | ||||||
| Main Load Cut Off Voltage | 26VDC | 52VDC | ||||||
| Main Load Return Voltage | 27VDC | 54VDC |
